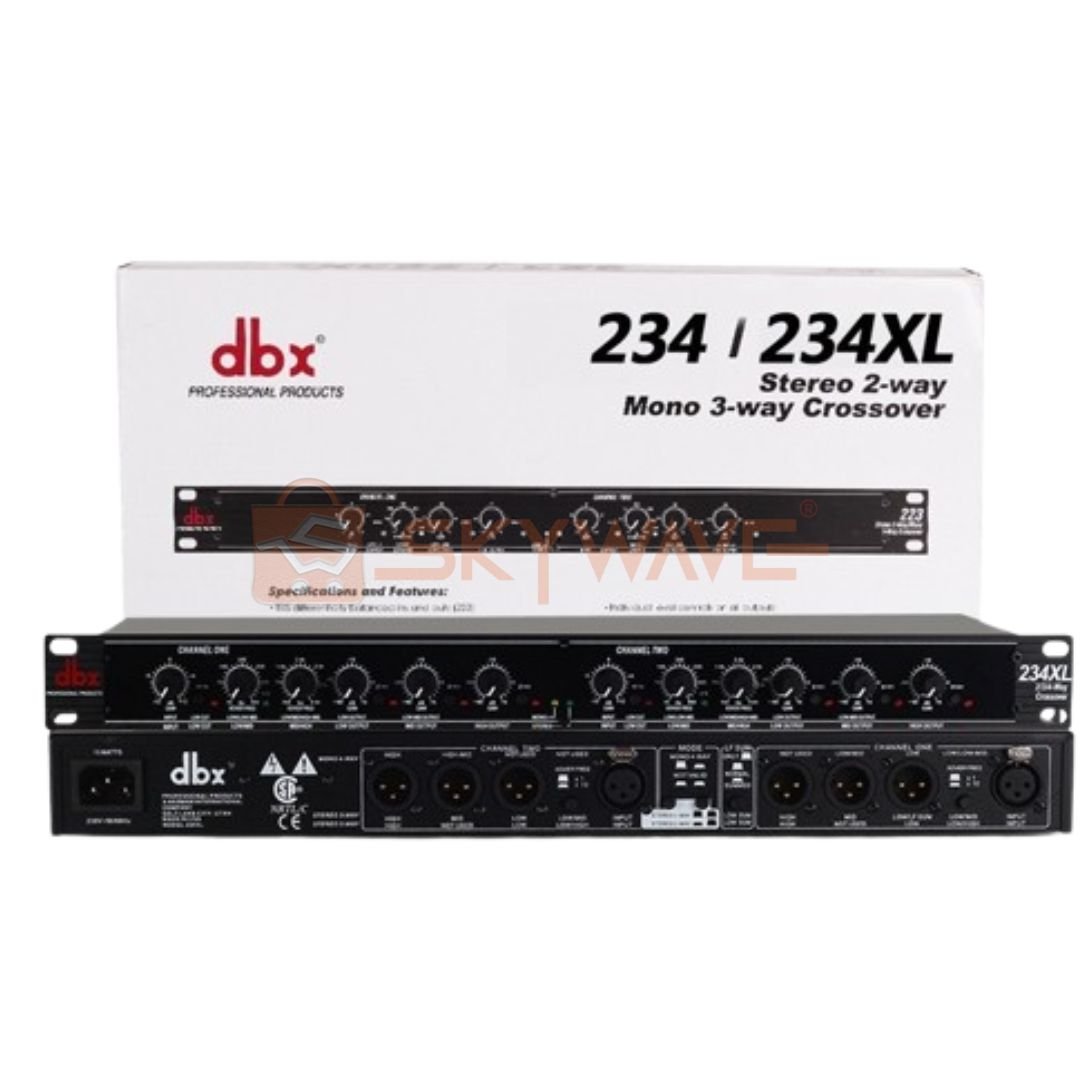

DBX 234 / 234XL Active Crossover

Professional Sound Management with the dbx 234 / 234XL Active Crossover

Elevate your audio performance with the dbx 234 / 234XL Active Crossover, a premium solution from dbx Professional Products. Engineered to meet the demands of professional sound systems, this active crossover ensures accurate frequency separation, versatile routing, and dependable performance in both live and studio environments. Whether you’re setting up a PA system, managing live sound for concerts, or optimizing a studio monitor system, the dbx 234/234XL provides the clarity, power, and flexibility required for superior audio control.

Model Variants and Connectivity

• dbx 234: Features TRS balanced inputs and outputs, making it compatible with a wide range of professional audio equipment.
• dbx 234XL: Offers XLR balanced inputs and outputs for secure, high-quality connections in demanding applications.

Both models are designed to provide clean signal processing with minimal distortion, making them ideal for high-performance environments.

Flexible Operating Modes

Adapt to any sound system configuration with multiple operation modes:

• 2-Way Stereo: For splitting signals into low and high frequencies per stereo channel.
• 3-Way Stereo: Adds a mid-frequency split for three-band audio control.
• 4-Way Mono: Combines both channels to split into four frequency bands, perfect for complex mono systems.

A convenient mode switch lets you toggle easily between these configurations, allowing one unit to serve multiple purposes depending on the application.

Precision Filtering for Professional Audio

The dbx 234 / 234XL includes Linkwitz-Riley 24 dB/octave filters, a professional standard known for maintaining phase alignment between frequency bands. These filters provide a smooth crossover transition, ensuring that your audio remains clean and undistorted across all output channels.

Additionally, a 40 Hz high-pass filter on both channels protects low-frequency drivers by filtering out unnecessary subsonic content, improving system longevity and performance.

Advanced Control and Monitoring

This crossover offers a full suite of user controls for precise tuning:

• Individual Output Level Controls: Set the perfect output levels for each band to maintain balanced sound.
• Phase Reverse Switches: Available on all outputs to resolve phase cancellation issues and enhance clarity.
• x10 Frequency Range Switch: Expands crossover frequency selection to accommodate a broader range of speaker systems and venue types.

Clear LED indicators show system status, including stereo/mono mode, for quick monitoring during setup or operation.

Dedicated Subwoofer Output

For systems requiring enhanced low-frequency reinforcement, the dbx 234 / 234XL features a low-frequency summed output. This allows easy integration of a subwoofer by combining both stereo channels’ low-end content into a single mono output, ideal for bass management in large sound setups.

Use Case

This active crossover is well-suited for:

• Public address systems
• Live concerts and stage sound reinforcement
• Studio monitoring configurations
• Installations requiring precise audio frequency distribution

Conclusion

With its robust construction, advanced filtering technology, and versatile operation modes, the dbx 234 / 234XL Active Crossover is a reliable and powerful tool for any professional audio technician. Experience clear sound, maximum flexibility, and unmatched audio control—perfectly tailored for demanding environments where sound quality and performance matter most
