Overview:
GTMEDIA V8 Finder 2 is a D V B-S/S2/S2X and MPEG-2/4 H.264 (8 Bit) compliant handheld signal finder meter. With its compact size, lightweight, intuitive user interface, long battery operational hours, and rich feature set, the meter provides all functions needed for the installation and verification of digital TV service to residential homes or multi-dwelling units.
Features:

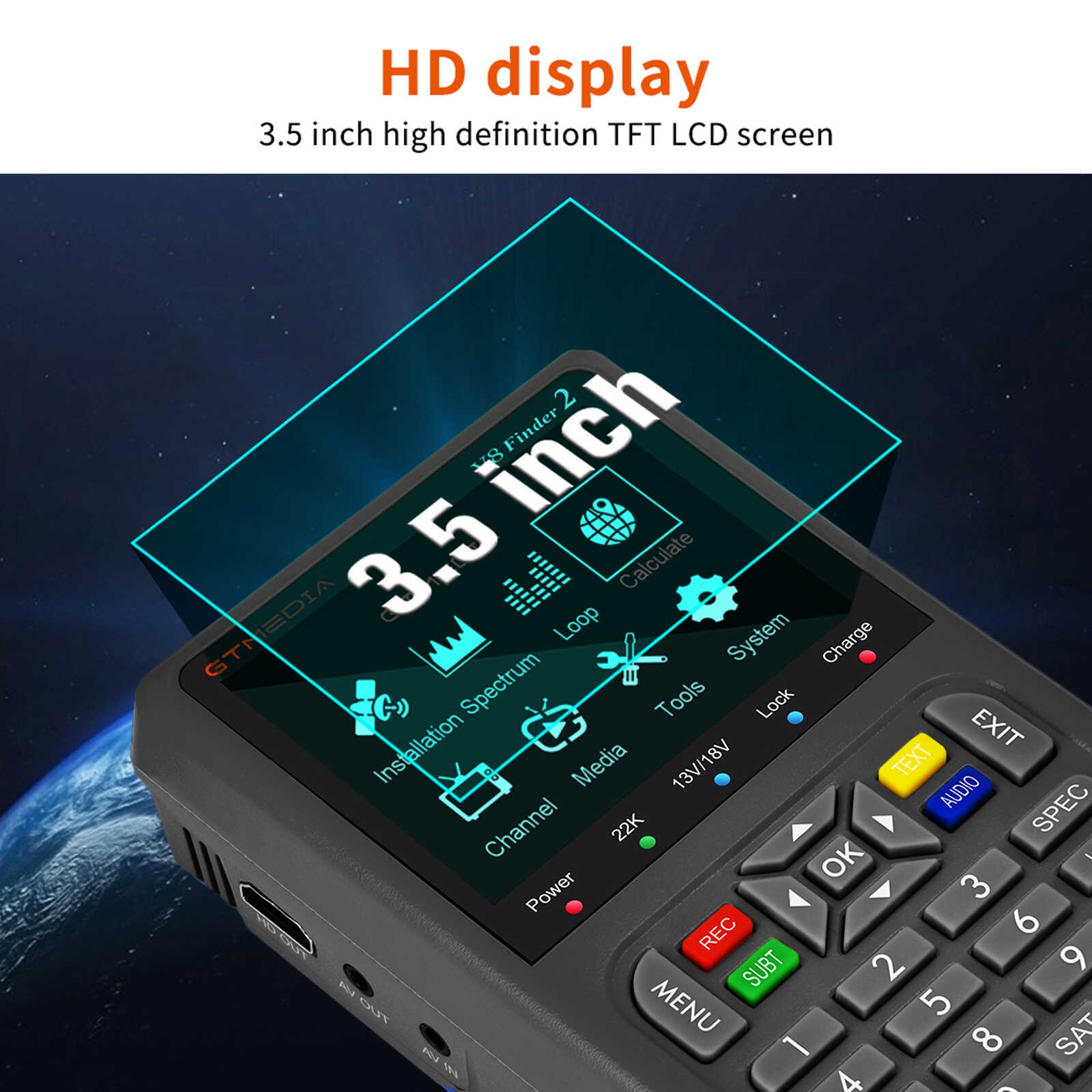

- 3.5 Inch High Definition LCD Screen

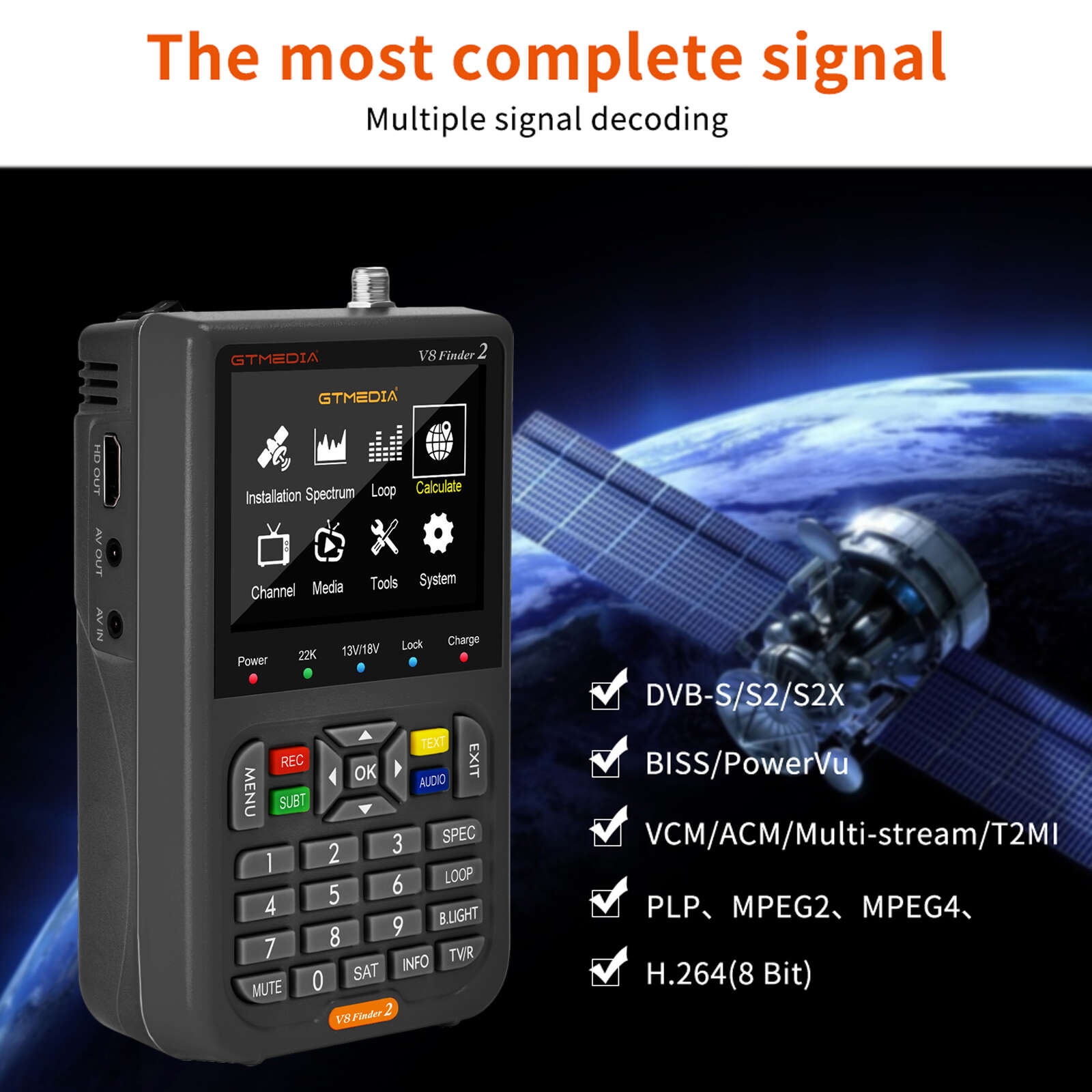

- Fully D V B-S2X/S2/S, MPEG-2/MPEG-4 compliant
- Support H.264 (8 Bit) Hardware decoding
- Digital measuring device for signal strength and quality
- Support Loop Search
- Spectrum analyzer
- Supports scan of Auto, Blind, Manual, or NIT
- Sound for Locking Signal
- Auto Calculate Angle of AZ, EL
- Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
- Speaker Integrated
- Support both AV out and AV in
- Support both HD out
- Support real-time power display, with low power reminder
- Supports Youtube for USB wifi 2.4G
- LNB short protect
- 7.4V/4000mAh Li-ion Battery Included
- Support Type-C charging interface, support multi-protocol fast charging
- Support Type-C reverse charging
- Software upgrade via USB port
Specifications:
- Connector Type: F Type
- Input Frequency: 950 to 2150 MHz
- Signal Input Level: ‐65 to ‐25 dBm
- Band Switch Control: 22KHz
- LNB Supply: 13V/18V, Max 350mA
- Demodulation Type: D V B-S2 QPSK, D V B-S2 QPSK/8PSK/16APSK/32APSK, D V B-S2X QPSK/8PSK/16APSK/32APSK/64APSK
- Symbol Rate: 2
- LCD Type: TFT Transmissive
- Number of Dots: 320 RGB*240
- Active area (W*H): 70.08(H)*52.56(V)MM
- Connector Type: 3.5 mm jack
- Video Output: CVBS
- Audio Output: Stereo Audio L/R output
- HD Output Connector: HD 1.3a
- AV Input Interface: 3.5 mm jack
- Video Input: CVBS
- Audio Input: Stereo Audio L/R input
- Video Decompression: MPEG-2 MP @HL, MPEG-1 Decoding, MPEG-4 ASP @l5 HD resolution, H.264 MP&HP @L4, HW JPEG decoder
- Resolving Rate: PAL-25 frame @720*576, NTSC -30 frame @720*480
- Signal Compatibility: Support conversion for different video formats
- Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion
- Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
- Audio Output Mode: Stereo, Mono, R/L
- DATA SERVICE PORT Connector: USB
- Data Protocol: USB 2.0 interface
- File Management System: NTFS, FAT32, FAT16
- File Format: Media: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
- Audio: WMA, mp3
- Photo: jpg, jpeg, bmp, img
- PVR Option: Support recording TS files
- WiFi Option: Support networking via USB WiFi
- Li-Lon Battery Capacity: 7.4V/4000mAh
- Power Consumption: Rated 8W (No external equipment)
- Temperature: Operation 0～+45 “℃”; Storage -10~+60 “℃”
- Humidity: 20~90%, non-condensed
- Item Size(W*D*H): 155*95*45mm/6.10*3.74*1.77in
- Item Weight: 317g/11.18oz
- Package Size: 204*164*57mm/8.03*6.45*2.24in
- Package Weight: 451g/15.90oz
