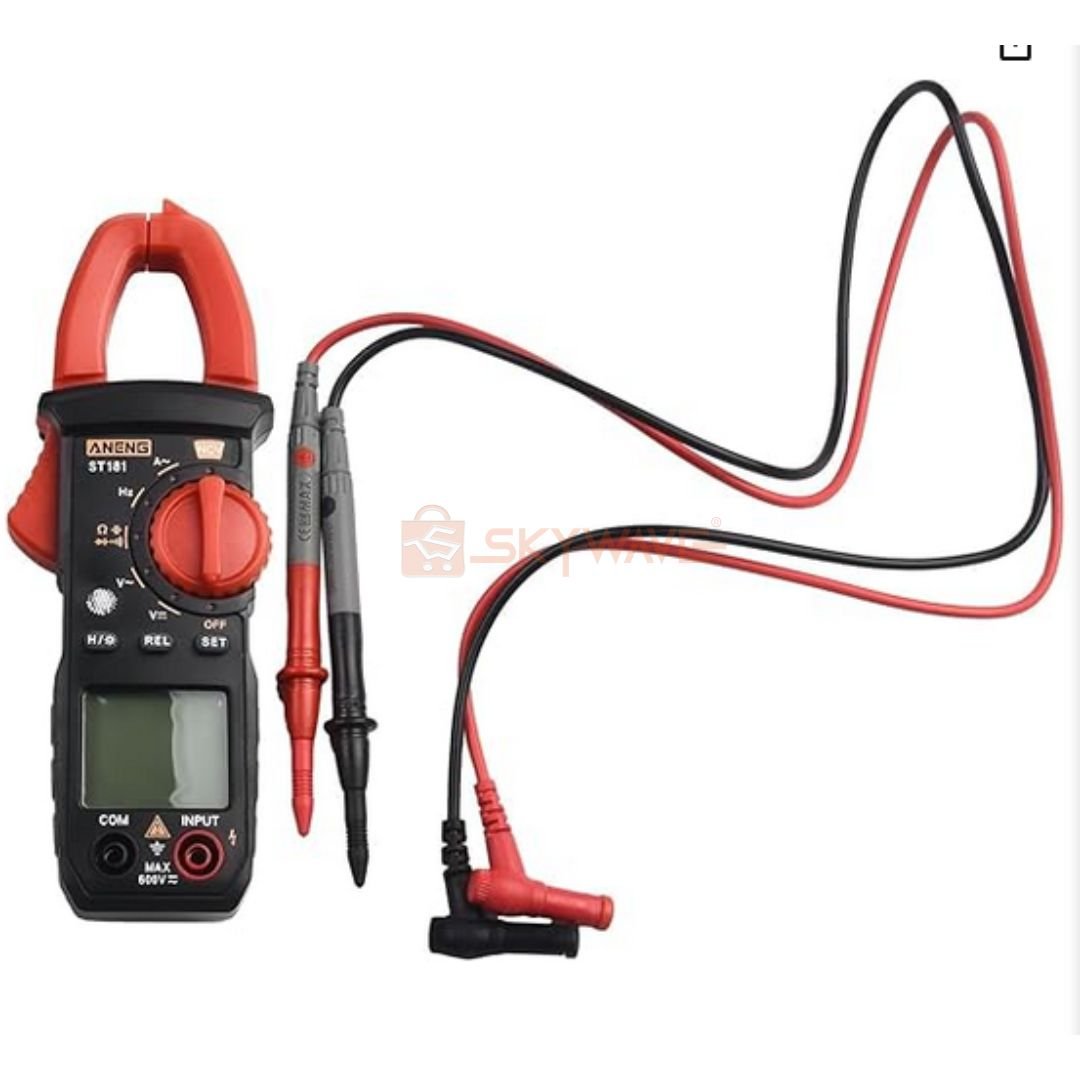

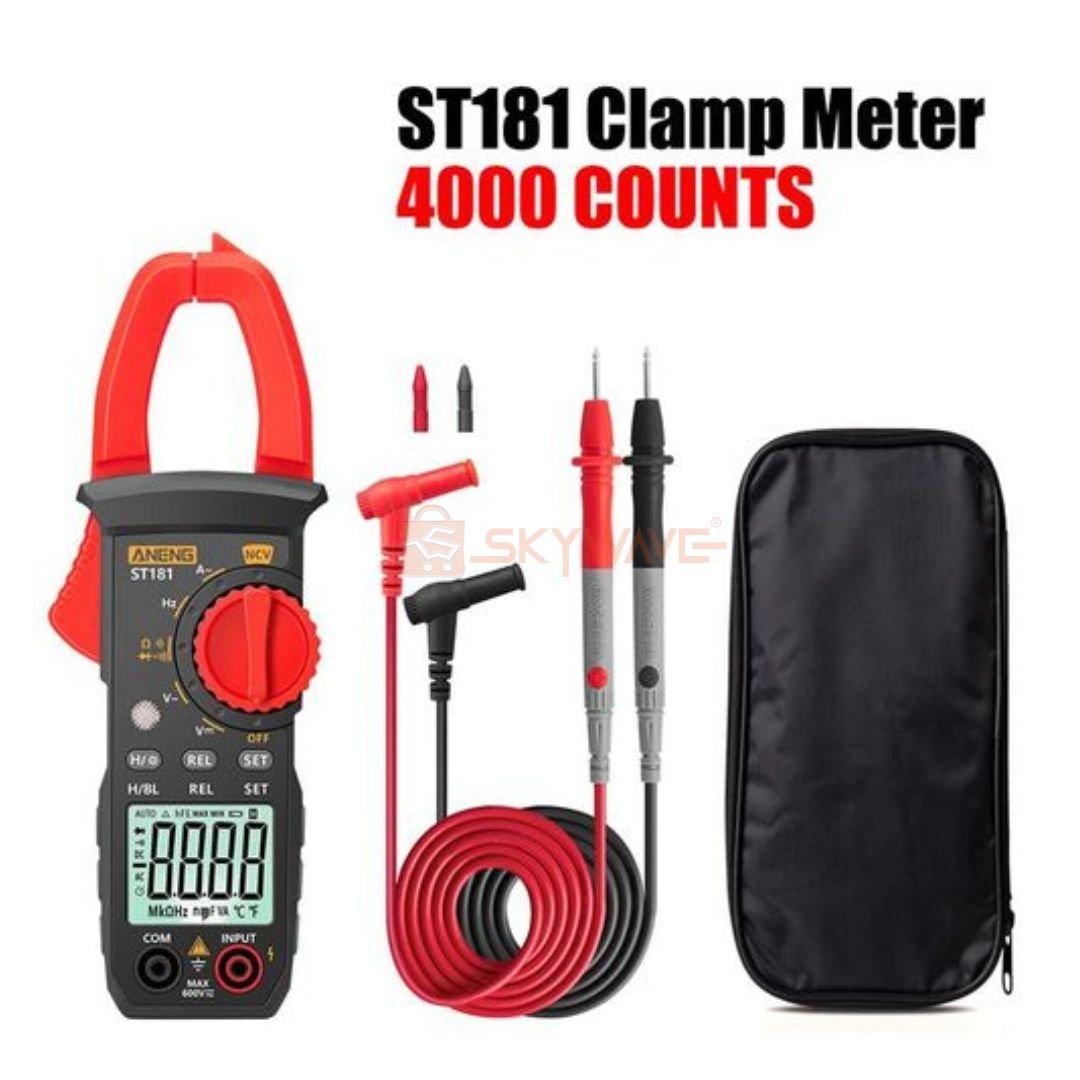

AC Clamp Multimeter ST181

AC Clamp Multimeter ST181 – Reliable Performance for All Your Electrical Measurement Needs

The AC Clamp Multimeter ST181 is a must-have tool for electricians, engineers, technicians, and DIY enthusiasts seeking accurate, quick, and hassle-free electrical readings. Designed with high-performance features packed into a compact and durable build, the ST181 goes beyond standard multimeter capabilities by offering clamp functionality that makes it easier and safer to measure current in a circuit without breaking the connection.

Whether you’re testing household appliances, performing automotive diagnostics, or inspecting electrical systems in commercial setups, the ST181 delivers clear, dependable, and versatile readings with minimal setup time. Its broad measurement range, intelligent detection features, and user-friendly interface make it one of the most efficient clamp meters in its class.

Key Features:

• Wide Range Measurement Capabilities:
  The ST181 supports DC voltage readings from 400mV to 600V and AC voltage from 4V to 600V, giving you flexibility across various devices and circuits. It also measures AC current up to 400A, perfect for current-heavy operations.

• High Sensitivity and Accuracy:
  With precision resistance measurements (400Ω to 40MΩ) and a wide capacitance range (4nF to 4mF), the ST181 helps detect even the smallest fluctuations and faults. It supports frequency detection from 4Hz to 4MHz.

• NCV (Non-Contact Voltage) Induction:
  Ensure user safety by detecting live wires without physical contact. The built-in NCV function alerts you to voltage presence quickly.

• Smart Utility Functions:
  Equipped with buzzer alerts, diode checks, firewire detection, and data hold, the ST181 is designed for ease of use. It simplifies testing with its intuitive setup, reducing your workload and helping avoid re-tests.

• Backlit LCD Display:
  The bright screen with backlight ensures clear visibility in low-light areas such as electrical boxes, basements, or automotive interiors.

• Ergonomic & Rugged Design:
  Compact in size (184×64.5×32mm) with a high-quality brass/PVC cord, the meter is built for comfort, portability, and durability in tough working environments.

• Auto Power Off:
  Automatic shutdown feature conserves battery life when the device is not in use, while the maximum digital display of 4000 counts guarantees precise and easy-to-read data.

• Battery Operated:
  Runs on two AAA batteries (not included), making it easy to replace and maintain power on the go.

Specifications Summary:

• DC Voltage: 400mV to 600V

• AC Voltage: 4V to 600V

• AC Current: 40A to 400A

• Resistance: 400Ω to 40MΩ

• Capacitance: 4nF to 4mF

• Frequency: 4Hz to 4MHz

• Diode Test & NCV: Supported

• Display Count: 4000

• Auto Shutdown & Data Hold: Included

• Display: Backlit LCD

• Battery: 2 x AAA (not included)

• Dimensions: 184 x 64.5 x 32mm

• Cord: Brass/PVC, 94cm length

Whether you’re conducting in-depth diagnostics or quick safety checks, the AC Clamp Multimeter ST181 stands out for its accuracy, convenience, and robust performance. Order now from Skywave and elevate your measurement experience with reliable tools built for real-world tasks.
